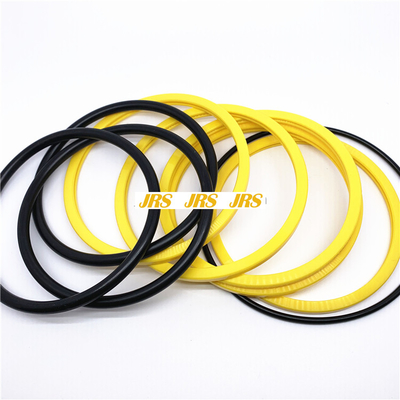

Center Join Seal Kit Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit E320B E320C E320D E330C E330D E330DFM

Center Join Seal Kit Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit E320B E320C E320D E330C E330D E330DFM

Removal Procedure
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publiion, NENG2500, "Dealer Service Tool alog" for tools and supplies suitable to collect and contain fluids on products.Dispose of all fluids according to local regulations and mandates.
Drain the coolant into a suitable container for storage or for disposal. Drain the coolant to a level that is below the coolant temperature sensor. Refer to Operation and Maintenance Manual, "Cooling System Coolant (ELC) - Change".
Illustration 1 g01260049
Disconnect harness assembly (1) from coolant temperature sensor (2).
Remove coolant temperature sensor (2) from the engine. Installation Procedure
Illustration 2 g01260049Note: Check the O-ring seal for wear or for damage. If necessary, replace the O-ring seal.
Install the O-ring seal onto coolant temperature sensor (2).
Install coolant temperature sensor (2) into the engine. Tighten coolant temperature sensor (2) to a torque of 20 3 N m (15 2 lb ft).
Connect harness assembly (1) onto coolant temperature sensor (2).
Fill the cooling system. Refer to Operation and Maintenance Manual, "Cooling System Coolant (ELC) - Change".

8T1791 | Seal Assy, Hydraulic Piston
HHP provides parts equal or better in quality compared to the OE at a fraction of the cost. || Products are crafted with hard-wearing materials for long-lasting strength and durability. || Parts meet or exceed OEM specifiions to ensure proper fit and function. || Image(s) is for illustration purposes only and may not represent the actual part. || Products are only sourced from quality certified manufacturing facilities.
