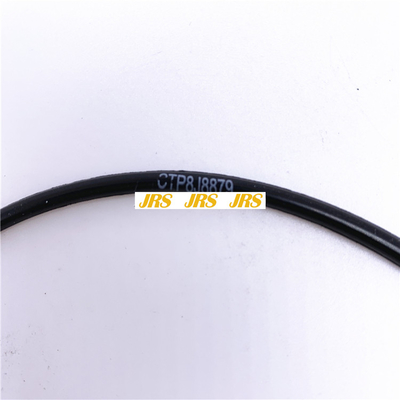

8J8879 ORING BACK UP BLACK RUBBER NBR70 90 for loader Hydraulic Cylinder Seal

8J8879 O Ring Seals

8J8879 ORING BACK UP BLACK RUBBER NBR70 90 for loader Hydraulic Cylinder Seal

AG TRANSMISSION TA22-M4WD
ASPHALT PAVER AP-650B AP-900B BG-225C BG-245C
BACKHOE LOADER 450E 450F
COMPACT WHEEL LOADER 910
EXCAVATOR 322C 322C FM 324D 324D FM 324D FM LL 324D L 324D LN 324E 324E L 324E LN 325C 325C FM 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 329E 329E L 329E LN M325D L MH M325D MH
GEN SET ENGINE 3512 3516
INDUSTRIAL ENGINE 3512 3516
LOGGER 322C
MARINE ENGINE 3512 3516
MINING EXCAVATOR 5230 5230B
MOBILE HYD POWER UNIT 324D LN 325C 325D 325D L 329D L 329E
RECLAIMER MIXER RM-350B
ROAD RECLAIMER
STABILIZER MIXER SM-350
TRACK FELLER BUNCHER 1090 1190 1190T 1290T 1390 2290 2390 2391 2491 2590 511 521 521B 522 522B 532 541 541 2 551 552 552 2 TK1051 TK711 TK721 TK722 TK732 TK741 TK751 TK752
TRACK LOADER 973C
TRACK SKIDDER D4HTSK II D4HTSK III D5HTSK II
TRACK-TYPE TRACTOR D4H D4H XL D5H D5H XL D7G D8L D8N D8R D9R
TRACTOR 776 776C 776D
TRUCK 777 777B 777D 777F 777G 797 797B 797F
VEHICULAR ENGINE 3512
VIBRATORY COMPACTOR CS-533C CS-563C CS-573C CS-583C
WHEEL LOADER 993K 994 994D 994F 994H
WHEELED EXCAVATOR M325C MH

Illustration 1 g01090281 (1) Water pump drive gear
Illustration 2 g00537659
Stub shaft for cluster gear
(2) Cluster gear Apply 9S-3263 Thread Lock Compound to the five bolts for the stub shaft. Tighten the five bolts for the stub shaft in the following sequence. See Illustration 2 for the numbering of the bolts. ... 1, 3, 4, 5, 2, 1, 2, 3, 4, 5, 1Apply 9S-3263 Thread Lock Compound to the four bolts that fasten the cluster gear to the stub shaft. Tighten the four bolts that fasten the cluster gear to the stub shaft to the following torque. ... 30 7 N m (22 5 lb ft)
