Product Details:
|
| Size: | Custom Size | Material: | Rubber,FKM |
|---|---|---|---|
| Standard Or Nonstandard: | Hydraulic Pump Or Hydraulic Motors Oil Seals | Product Name: | Hydraulic V Set Textile Rubber Oil Seal |
| Delivery Time: | 3-15 Days | Payment Terms: | T/T, Western Union |
| Highlight: | FKM Hydraulic Oil Seal Kit,PTFE Hydraulic Oil Seal Kit,FKM Rubber Oil Seal |
||

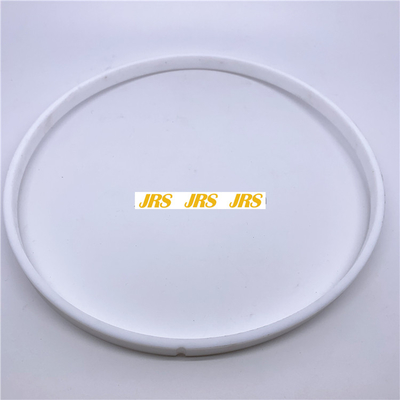

White Hydraulic Oil Seal Kit Rubber FKM PTFE Rubber NBR Material
WHITE KZT SPGO Piston seal spgo hydraulic seals for cylinders PTFE NBR Hydraulic Cylinder Excavator
SEAL KITS---
BOOM CYL SEAL KIT . ARM CYL SEAL KIT . BUCKET CYL SEAL KIT
MAIN PUMP SEAL KIT . HYDRAULIC PUMP SEAL KIT . PIOLVE VALVE SEAL KIT.
GEAR PUMP SEAL KIT VALVE SEAL KIT .PUMP PLUNGE SEAL KIT .
.CONTROL VALVE SEAL KIT. SWING MOTOR SEAL KIT .. TRAVEL MOTOR SEAL KIT .
ADJ CYL SEAL KIT. CENTER JIONT KIT BREAKER SEAL KIT
Oil Seal -- TC TB TCV TCN DB DC DCY TC4Y ISPID BABSL
Piston seal : SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS , OK SELA OUY D-8
Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6
U Seal : UPI UPH USH USI V99F V96H UN
Buff Seal : HBTS HBY HBTTS D-14
Wiper Seal : DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY DH ME-2 ME-8
Wearing Ring : WR KZT RYT
Rotary Seal : ROI D-14 SPN
Back Up Ring : N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O Ring : Oring Kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9series M 2.4 series
M 3.0 series M4.0 series
Piston seal : SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS , OK SELA OUY D-8
Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6
Valve Pusher Floating oil seal Bushing hydraulic cylinder seals cylinder seal kits
Illustration 1 g02991562
Table 1
Specifiion for 380-5016 Accessory Drive Gp
Item Qty Part Specifiion Description
1 2 157-2811 Thrust Washer Thickness is 8.50 0.05 mm (0.335 0.002 inch).
2 1 315-2643 Pump Drive Shaft Diameter is 74.900 0.015 mm (2.9488 0.0006 inch).
3 1 7C-3258 Thrust Washer Assembly Apply blue Loctite 242 to the 7N-2047 Dowel.
Protrusion of the 7N-2047 Dowel from the surface is 4.5 0.5 mm (0.18 0.02 inch).
Thickness is 7.00 0.15 mm (0.276 0.006 inch).
4 1 144-8263 Idler Gear As Bore of the 140-9597 Bushing after assembly is 90.000 0.010 mm (3.5433 0.0004 inch).
Installation depth for the 140-9597 Bushing is 2.3 0.5 mm (0.09 0.02 inch).
Diameter of the 7E-0273 Idler Gear is 96.000 0.025 mm (3.7795 0.0010 inch).
5 1 259-4598 O-Ring Seal Lubrie the bore lightly with the lubricant that is being sealed.
6 1 7C-3260 Shaft Diameter is 89.88 0.02 mm (3.539 0.001 inch).
7 1 7E-0275 Water Pump Drive Gear Bore is 74.980 0.025 mm (2.9520 0.0010 inch).
