Product Details:
|
| Size: | Custom Size,Standard/Nonstandard Size | Color: | Green |
|---|---|---|---|
| Material: | NBR | Standard Or Nonstandard: | Hydraulic Pump Or Hydraulic Motors Oil Seals |
| Delivery Time: | 7-15 Days | Payment Terms: | T/T, Western Union |
| Highlight: | DH130 5 Hydraulic Pump Seal Kit,DH130 3 Track Adjuster Seal Kit,DH130 5 Hydraulic Breaker Seal Kit |
||

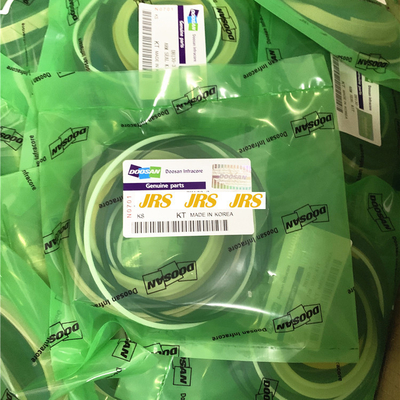

DH130 3 DH130 5 Hydraulic Pump Seal Kit Fit For Arm Boom Bucket
DH130-3 -5 Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit Center Join Seal Kit
| Komatsu | PC45MR PC56-7 PC60-7 PC70-8 PC60-6 PC40-7 PC40-8 PC60-2 PC60-5 PC60-6 PC75 |
| PC100-5 PC120-6 PC150-5 PC130-7 PC200-3 PC200-6 PC200-8 PC210LC-8 PC220-8 | |
| PC240LC-8 PC300-3 PC300-5 PC300-6 PC300-7 PC360-7 PC400-3 PC400-5 PC600-6 | |
| Doosan / Daewoo | DH60-7 DH80-7 DH130 DH150 DH150-7 DH200-5 DH215-7 DH215-9 DH220-5 DH220-2 DH220-3 DH225-7 DH250-7 DH280-3 DH280 DH300 DH300-5 DH300-7 |
| DH330-3 DH420LC-7 DX225 DX300 Solar175 Solar220lc Solar300 Solar340 | |
| Sumitomo | SH60 SH75 SH100 SH120 SH120-6 SH130 SH160 SH200 SH200A3 SH220 SH260 SH280 SH300 SH340 SH430 SH450 |
| S280 S280FA S280F2 S281 S265F2 S340 | |
| Kato | HD250 HD300 HD307 HD400 HD450 HD550 HD550-3 HD700 HD700-5 HD700-7 HD700-2 HD770 HD800-7 |
| HD800SD-5 HD820-2 HD820 HD850 HD880-1 HD850 HDHD900-7 | |
| Other brands | John Deere 200C John Deere 230LC John Deere 240D John Deere 330C bob325 |
| JCB160 JCB180 JCB220 JCB330 JCB360 CLG200 LIUGONG922 Sunward60 Sunward70 | |
| TM02 TM04 TM05 TM06 TM07 TM09 TM10 TM18 TM22 GM06 GM08 | |
| NOTE: not all the models are listed here, if you need more details ,please contact us. |
Required Parts
Table 1
Item Qty Part Number Description
1 2 360-4611 Plugs
3 1 360-4612 Plug Field Installation Procedure
Use the following procedure in order to install the new plugs:
Illustration 1 g02287674
Sheet metal and fire wall
Remove the sheet metal and fire wall around the main pump. Refer to Illustration 1.
Loosen the main pump installation bolts on the pump flange.
Remove the main pump from the engine, for a distance of 20 to 30 mm (0.8 to 1.2 inch) and maintain the gap.
Illustration 2 g02287773
(2) Pump flange
Install two plugs (1) with the brim of the plug facing toward flywheel housing. Refer to Illustration 2.
Illustration 3 g02289873
Assemble the main pump with flywheel housing.
Illustration 4 g02289893
(4) Flywheel housing
Install one plug (3) into the hole between the flywheel housing and the main pump flange. To hook the brim of the plug in the flywheel housing, install the plug with the chamfer corner of the plug facing toward flywheel housing.
