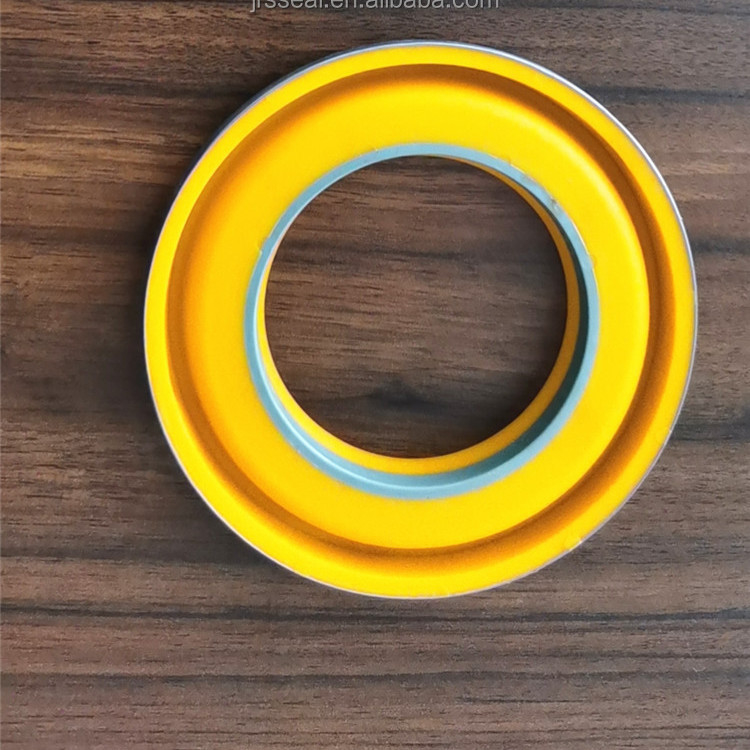

8E7754 SEAL parts D10N SEAL



Engine:
3600 Diesel
C280 Diesel
G3600Engine News SEBD9235, 9 May 1996, "New High Temperature Resistant Seal Group And O-Ring Seal Used In Water Pump Groups". Disregard the article. Refer to the information that follows.Description of Change: Changes have been made in order to improve the reliability of water pumps in the above listed engines.An improved seal group is used. The new seal has a face that is made from graphite loaded silicon carbide. The new material will increase the life of the sealing faces.A new spacer is used with the impeller retaining bolt. The new spacer is used to allow more accurate torquing of the impeller retaining bolt so that the bolt will not work loose.Adaptable To: The 118-8086 Face Seal Group and the 9Y-5632 Face Seal Group have been cancelled and replaced by the 292-5982 Face Seal Group .The new 301-9585 Spacer can be used for a sea water pump or for a jacket water pump. The 4W-0234 Spacer is less expensive to use for a jacket water pump. The 301-9585 Spacer replaces several former parts. Refer to Table 1. The new parts have the same dimensions as the former parts and can be used in the former pumps without modifiions.The new parts for the water pumps are adaptable to the engines that are listed above. Serial number effectivity is listed in Table 2.

Table 1
Former Parts and New Parts
Former Part New Part Former Part New Part Former Part New Part Usage
Pump Pump Spacer Spacer Seal Seal
7E-3172 304-4942 4W-0234 118-8086 292-5982 Standard Jacket water pump for 3606 and 3608 engines
7E-8179 304-4948 4W-0234 118-8086 292-5982 Standard Jacket water pump for 3608, 3612, and 3616 engines
7E-4358 304-4957 257-5138 301-9585 9Y-5632 292-5982 Standard sea water pump
130-0475 304-4966 7W-0896 301-9585 9Y-5632 292-5982 High capacity sea water pump (reverse rotation)
130-0477 269-8303 7W-0896 301-9585 9Y-5632 292-5982 High capacity sea water pump (standard rotation)
259-1984 304-4968 257-5138 301-9585 9Y-5632 292-5982 High capacity sea water pump (standard rotation) for 3618 engines
Illustration 1 g01432228
Typical example (1) Spacer (2) Seal
Table 2
Serial Number Effectivity
Model Serial Number
G3606 S/N:3XF00375-UP
G3606 S/N:4ZS00867-UP
3606 S/N:8RB00981-UP
G3608 S/N:4WF00249-UP
G3608 S/N:BEN00416-UP
3608 S/N:5PG00106-UP
3608 S/N:6MC00772-UP
3608 S/N:1ZD00036-UP
3608 S/N:7WR00041-UP
3608 S/N:8LL00034-UP
G3612 S/N:1YG00261-UP
G3612 S/N:BKE00401-UP
3612 S/N:2NZ00176-UP
3612 S/N:9FR00021-UP
3612 S/N:9RC00491-UP
3612 S/N:NZA00111-UP
G3616 S/N:4CG00248-UP
G3616 S/N:BLB00386-UP
G3616 S/N:CPG00256-UP
3616 S/N:1FN00150-UP
3616 S/N:1PD00524-UP
3616 S/N:RMN00113-UP
