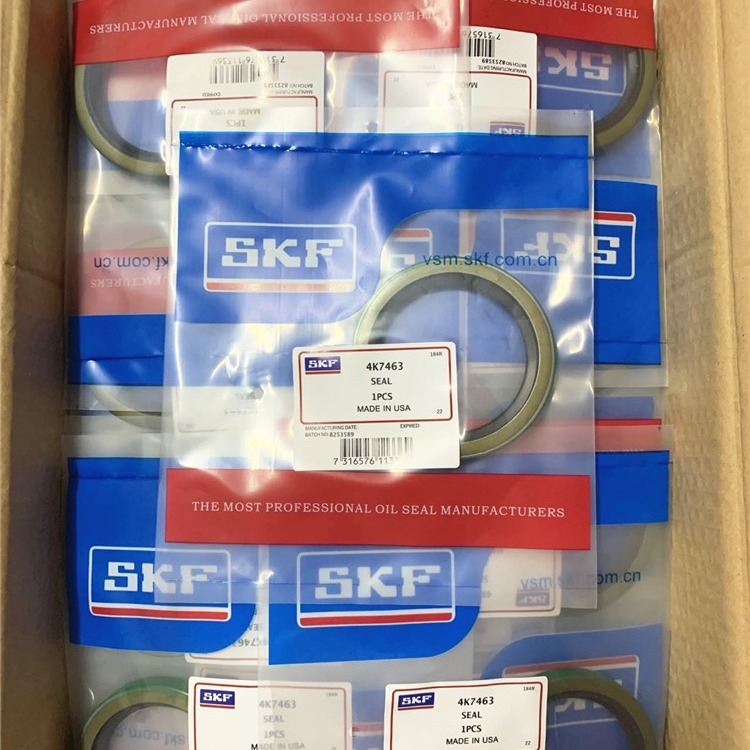

5K2595 4K7463 Seal 4B4967 2B6005 5K2595 M-5K2595 Wheeled Excavator

5K2595 4K7463 Seal 4B4967 2B6005 5K2595 M-5K2595 WHEELED EXCAVATOR

Aftermarket replacement 5K2595 Seal - Oil
Generic P009278, 4B4967, 2B6005, 5K2595, M-5K2595, Seal - Oil, , Seal, Oil 5K2595,

4I7463 Gear Sun Fits 322B L 322B LN 325B L 325B LN 350 350 L M325B

Every attempt is made to provide accurate, up-to-date information. By the use of this document, you agree that Inc. is not responsible for errors or omissions.
The information provided are the latest recommendations for the diesel engines that are covered by this Special Publiion. This information supersedes all previous recommendations which have been published for the diesel engines that are covered by this Special Publiion. Special fluids are required for some engines and continued will be necessary. Refer to the applicable Operation and Maintenance Manual.This publiion is a supplement to the Operation and Maintenance Manual. This publiion does not replace the engine Operation and Maintenance Manuals.
These recommendations are subject to change without notice. Consult your local dealer for the most up to date recommendations.
In order to avoid potential damage to your machine and/or engine, only purchase fluids and filters through your dealer or authorized outlets. For a list of authorized parts outlets in your area, consult your dealer.If you purchase what appear to be fluids and/or filters through other outlets/sources, you are at a very high risk of purchasing counterfeit ("look-alike") products.Counterfeit or "look-alike" products may visually appear the same as the original product, but the product performance and internal quality will typically be very low.Counterfeit or "look-alike" products have a very high likelihood of causing and/or allowing engine and/or machine compartment damage.
Follow all industry standard safety practices when operating engines and/or machines and when performing all recommended and/or required maintenance.Note: Instructions for the installation of the filter are printed on the side of each spin-on filter. For non- filters, refer to the installation instructions that are provided by the supplier of the filter.
In order to meet expected fuel system component life, 4 micron(c) absolute or less secondary fuel filtration is required for all diesel engines that are equipped with common-rail fuel systems. Also, 4 micron(c) absolute or less secondary fuel filtration is required for all diesel engines that are equipped with unit injected fuel systems. For all other diesel engines (mostly older engines with pump, line and nozzle type fuel systems), the use of 4 micron(c) absolute or less secondary fuel filtration is strongly recommended. Note that all current diesel engines are factory equipped with Advanced Efficiency 4 micron(c) absolute fuel filters.In order to obtain additional information on designed and produced filtration products, refer to the "Reference Material" article, "Filters" and "Miscellaneous" topics in this Special Publiion. Consult your dealer for assistance with filtration recommendations for your machine.
does not warrant the quality or performance of non- fluids and filters.
General Recommendations and Guidelines
Follow all applicable industry standards and all applicable governmental, environmental, and safety guidelines, practices, regulations, and mandates.Note: These general recommendations and guidelines concerning maintenance and care of fuel and fuel storage systems are not intended to be all inclusive. Discuss proper fuel safety and health, handling, and maintenance practices with your fuel

Illustration 1 g02558079
Table 1
Specifiion for the 283-6414 Air Shutoff Gp and 185-1676 Air Shutoff Gp
Item Qty Part Specifiion Description
1 2 5N-3852 Bearing Distance of bearing installation below the surface of the elbow is 0.25 0.25 mm (0.010 0.010 inch).
The bore in the elbow for the bearings is 18.263 0.013 mm (0.7190 0.0005 inch).
2 1 4P-8021 Valve As The valve assembly is shown in the run (open) position. When the valve is closed, a 0.08 mm (0.003 inch) feeler gauge must not fit between the valve and the bore in the pipe at any point.
3 1 5N-2830 Shaft As Diameter of shaft is 15.800 0.025 mm (0.6221 0.0010 inch).
Bore in the bearing is 15.88 mm (0.625 inch).
4 1 5H-1190 Lip Type Seal Lightly lubrie the shaft with glycerin or approved equivalent.
5 1 3N-7848 Spring Length under test force is 22.9 mm (0.90 inch).
Test force is 4.4 N (1.0 lb)
Free length after test is 35.56 mm (1.400 inch)
6 1 5N-5129 Shaft As needed, adjust the shaft to change the spring tension until the hold in current consumption (draw) is less than 2 amp at shutdown.
Diameter of shaft is 9.60 0.03 mm (0.378 0.001 inch).
Bore in the bearing is 9.80 0.03 mm (0.386 0.001 inch).
7 1 108-2858 Spring Free length is 54.5 0.5 mm (2.15 0.02 inch)
8 1 5N-5664 Bracket As Bracket assembly must be adjusted so that the valve assembly is parallel to the pipe bore within 2 degrees in run position.
9 1 4N-3889 Shutoff Solenoid Voltage rating is 9.0 to 14.4 VDC.
Current consumption in pull-in windings at 14.4 VDC is 53.7 amp.
Current consumption in hold-in windings at 14.4 VDC is 1.22 amp.
Distance from the plunger face to the flange face after the solenoid has been energized is 8.0 0.5 mm (0.32 0.02 inch).
10 1 1W-9070 Diode The diode assembly is required to suppress the back voltage spike that is generated when the solenoid is turned off.
