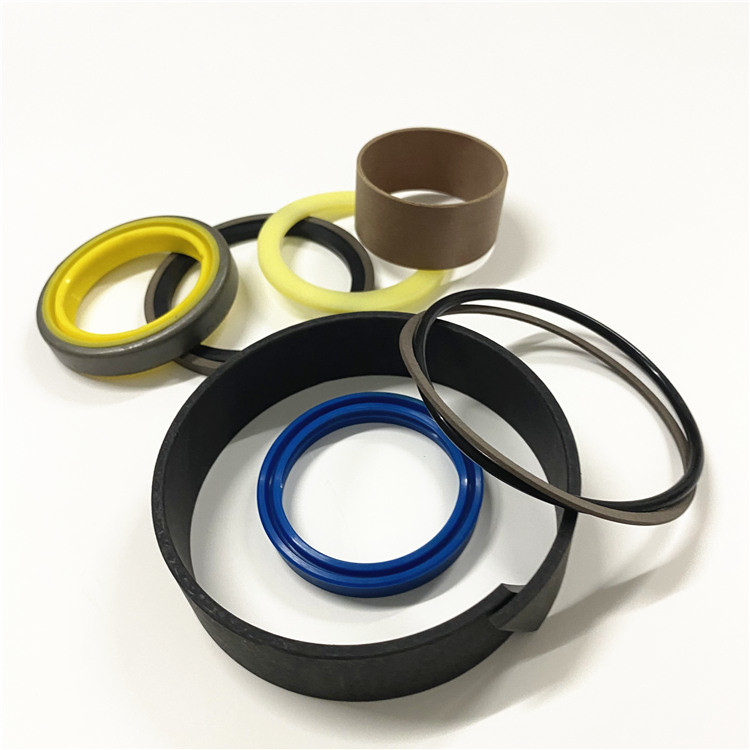

1857691 2339207 Hydraulic Motor Seal Kit H 1328817 Vulcanized Rubber

1857691 2339207 KIT Seal H 1328817 fit kit tift lift

Disassembly Procedure
Start By:
Remove the retarder hydraulic control valve. Refer to Disassembly and Assembly, "Retarder Hydraulic Control Valve - Remove".
Illustration 1 g01273534
Personal injury can result from being struck by parts propelled by a released spring force.Make sure to wear all necessary protective equipment.Follow the recommended procedure and use all recommended tooling to release the spring force.
Remove covers (1) and (2) .
Illustration 2 g01273544
Illustration 3 g01273536
Remove spool assembly (3) .
Illustration 4 g01273565
Remove slug (4), spring (5), stop (6), and spring (7) .
Illustration 5 g01273574
Remove bolt (14). Remove bearing race (8), thrust bearing (9), bearing race (10), spool (11), diaphragm (12), and cover (13) .
Illustration 6 g01273575
Personal injury can result from being struck by parts propelled by a released spring force.Make sure to wear all necessary protective equipment.Follow the recommended procedure and use all recommended tooling to release the spring force.
Remove plug (15) .
Illustration 7 g01273577
Remove plunger (16), spring (17), and O-ring seal (18) from plug (15) .
