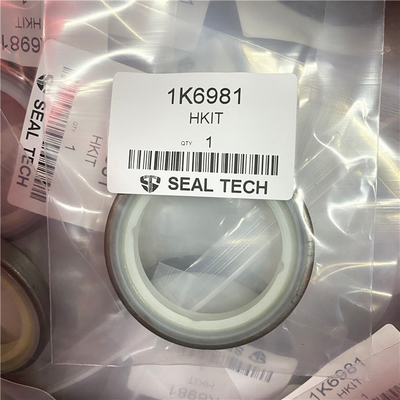

1K6981 8C9133 3081845 1672457 Dust Wiper Seals Lip Type e 4J8980 8C9132 3081880 1672452

BACKHOE 931
BACKHOE LOADER 426 428
BULLDOZER 3S 4A 4S 6A 814S 824S
CHALLENGER 65
COMPACT WHEEL LOADER 910
INTEGRATED TOOLCARRIER IT12 IT18B
LANDFILL COMPACTOR 816 826B
MOTOR GRADER 12G 130G 140G 14E 14G 16 160G 16G
PIPELAYER 561C 561D 571G 572G 583K 594 594H
RIPPER 933 951

BACKHOE LOADER 428
COMPACT WHEEL LOADER 910
INTEGRATED TOOLCARRIER IT12
LOGGER 227
MOTOR GRADER 120G 12G 130G 140G 14G 160G 16G
TRACK LOADER 931B 931C 931C II
TRACK-TYPE TRACTOR D3 D3B D3C D4C D4C III D4H
TRACTOR 772
TRUCK 769
WHEEL LOADER 936 950 950B G936
WHEEL SKIDDER 508 518 528 528B
WHEEL TRACTOR 637E
SOIL COMPACTOR 815 815B 825C
TRACK LOADER 931B 931C 941 943 951B 953 953C 955C 955H 955K 955L 973 977D 977H 977K 977L
TRACK-TYPE TRACTOR D3B D4E D4E SR D4H D4H XL D5H D5M
WHEEL DOZER 814 814B
WHEEL LOADER 920 930 930R 950 966C 966D 980 980B
WHEEL SCRAPER 613 613C 633
WHEEL SKIDDER 518 528
WHEEL TRACTOR 613B 613C 657





Specifiion for 9Y-8909 Auxiliary Water Pump Gp
Item Qty Part Specifiion Description
1 1 9X-4594 Lip Type Seal Do not lubrie the sealing lip.
4 1 166-4375 Seal Gp Use the following procedure in order to install the seal group:
Only use clean water or P-80 to lubrie the parts.
The seal installation tool is part of the replacement seal group.
1. Use seal installation tool with hand pressure to install the rubber seal (2) and the ceramic ring (3) as a unit into the pump housing assembly.
2. Remove the spring from the seal group.
3. Use the seal installation tool with hand pressure to install the seal group onto the shaft until the seal faces make light contact.
4. Install the spring onto the seal group.

Note: Intermittent leakage of a small amount of coolant from the weep hole is not an indiion of water pump seal failure. Seepage is normal to ensure proper lubriion of the face of the water pump seal. Replace the water pump if excessive leakage is observed from the weep hole in the water pump housing.
Illustration 1 g01030503
Identify the orientation of the bolts for the hose clamps for installation purposes. Loosen hose clamps (1) and (2). Slide the hose from cover (4).
Remove bolts (3) and cover (4) .
Illustration 2 g01030504
Remove bolts (6) from the front housing. Remove water pump (5) .
Illustration 3 g01030505
Remove O-ring seal (7) from the water pump.
B - - Clearance between the impeller and the water pump cover is 0.5000 0.4925 mm (0.01968 0.01939 inch).
C - - Distance from the impeller to the face of the pump housing assembly is 31.6526 0.4425 mm (1.24616 0.01742 inch).
5 1 149-5462 O-Ring Seal Before assembly, lightly lubrie the bore with glycerin or an approved equivalent.
6 1 212-8180 Pump Drive Shaft As Lubrie with a thin film of clean engine oil before pressing the impeller onto the shaft. The end of the shaft must be flush with the face of the impeller within 0.00 to 0.30 mm (0.000 to 0.012 inch).
7 1 5H-6734 O-Ring Seal Before assembly, lightly lubrie the bore with glycerin or an approved equivalent.
8 4 0S-1594 Bolt Torque to 35 5 N m (26 4 lb ft).
9 1 3D-2824 O-Ring Seal Before assembly, lightly lubrie the bore with glycerin or an approved equivalent.
10 1 7G-8478 Adapter Torque to 100 10 N m (75 7 lb ft).
11 3 9S-8752 Full Nut Torque to 27 4 N m (239 35 lb in).
