Product Details:
|
| Color: | Blue | Material: | Rubber |
|---|---|---|---|
| Warranty: | 1 Year | Hardness: | 70degree-95degree |
| Condition: | Long Life | Size: | Custom Size |
| Highlight: | SB70 Hydraulic Breaker Seal Kit,Heavy Machinery Hydraulic Breaker Seal Kit |
||

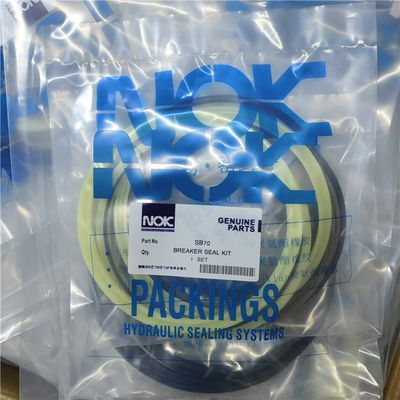

SB70 Hydraulic Breaker Seal Kit Cylinder O-Ring SB80 For SOOSAN Heavy Machinery
Seal Kit for SOOSAN Brand Hydraulic Breaker Model |
||||
SB 10 |
SB 20 |
SB 30 |
SB 35 |
SB 40 |
SB 43 |
SB 45 |
SB 50 |
SB 60 |
SB 70 |
SB 81 |
SB 81N |
SB 100 |
SB 121 |
SB 130 |
SB 140 |
SB 151 |
|||
Part No.
| 02896-61008 | 07000-53032 | 4138938 |
| 07000-12434 | 07002-13032 | 159307 |
| 07002-10823 | 07000-13035 | 159219 |
| 07002-11023 | 07000-53035 | 135201 |
| 07002-11223 | 07000-53038 | 408409 |
| 07002-11623 | 07000-B2038 | 419806 |
Various models:
| DMB03 | SB45 | RHB308 | 14 |
| DMB04 | SB50 | RHB309 | |
| DMB06 | SB60 | RHB313 | |
| DMB500 | SB7080 | RHB320 | |
| DMB700 | SB81N | RHB321 | |
| DMB900 | SB100 | RHB306 | DMB1300 |
| Hydraulic seal kit | Phenolic Wear Rings:The function of a hydraulic phenolic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder, absorbing transverse forces. At the same time, it prevents metal-to-metal contact, optimizing the performance of the sealing system |
| Hydraulic seal kit- Piston seals | Piston Seals or Piston Rings are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurised fluid does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore.For a cylinder which is exclusively single-acting, capable of sealing dynamic pressure from one side (unidirectional), it is always best to choose the type of seal designed to provide optimum sealing qualities for single-acting functions. |
| Hydraulic seal kit- Buffer seals/buffer rings | HBY buffer ring does more then normal buffer ring does, not only just buffer the pressure spikes of hydraulic systems, but also acts as a primary seal and pressure spike suppressor. It is mainly used in construction machinery cylinder. |
| Hydraulic seal kit- Wiper seals/Dust seals | Wipers are installed in the sealing configurations of hydraulic cylinders to prevent contaminants such as dirt, dust and moisture from entering the cylinder as they retract back into the system. The wiper seal is the most undervalued seal type in the hydraulic cylinder in relation to its important function. Particular attention should be drawn to its selection, the surrounding environment and service conditions must also be taken into special consideration.. |
| Hydraulic seal kit- Rod seals | The rod seal is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Leakage through the rod seal can reduce equipment performance, and also in extreme s can cause environmental issues |
| Hydraulic seal kit- PTFE/Teflon backup rings | Back-up rings are also known as anti extrusion rings. They have been used for many years in conjunction with O-Rings in high pressure applications. A back-up ring is a rigid ring that holds an elastomeric seal to its designed shape and in its correct place. Back-up rings are often used with O-Rings to prevent extrusion at high pressures. |
