CTP 246-5912 Cylinder & Rods (2465912) Aftermarket

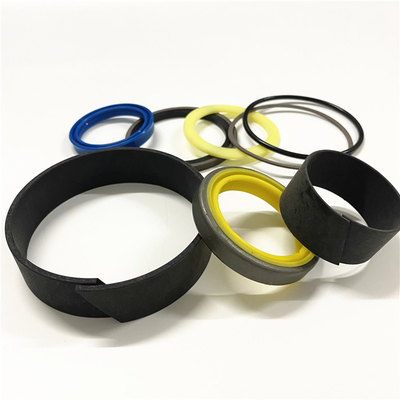

One New Cylinder Seal Kit Fits , Fits 769, 769B, 950, D4E Models Interchangeable with 1856589, 1856589-A, 2465915, 2465915-A, 7X2812, 7X2812-A
Stevens Lake Parts Rod: 1 1/2", Bore: 3 1/2" || This Is An Aftermarket Replacement Part Made To Meet Or Exceed OEM Specifiions. || Please Note That OEM Part Numbers, Models, & Dimensions Are Intended For Your Cross-Reference. Feel || Some Listings Use Stock Images For Customer Reference, Please Allow For Slight Differences.

2465916 Kit-Seal-H Cylinder Fits 1856590 120H 12H 12H NA 140H

Item Qty Part Specifiion Description
Before you install the pump, lubrie the moving parts with clean engine oil. Rotate the pump by hand to ensure that the pump rotates freely.
1 1 298-6387 O-Ring Seal Lubrie the bore lightly with Bonderite S-OT 40, Rubber lubricant immediately before assembly of the engine oil pump.
2 2 7N-5052 Gear Length of the new gear is 84.000 0.015 mm (3.3071 0.0006 inch).
Depth of the bore in the oil pump body for the new gear is 84.150 0.020 mm (3.3130 0.0008 inch).
3 2 7W-0059 Pump Shaft Assembly Diameter of the 7W-1017 Shaft is 31.742 0.008 mm (1.2497 0.0003 inch).
Distance (B) from the end of the shaft to the gear face is 34.0 0.5 mm (1.34 0.02 inch).
4 1 2S-2760 Spring Length under test force is 117.14 mm (4.612 inch).
Test force is 499 24 N (112 5 lb).
Approximate free length after test is 152.91 mm (6.020 inch).
5 1 2W-6618 Pump Drive Shaft As Diameter of the new 7N-5058 Pump Drive Shaft is 31.742 0.008 mm (1.2497 0.0003 inch).
Distance (C) from the end of the shaft to the gear face is 47.0 0.5 mm (1.85 0.02 inch).
6 6 7W-0060 Bushing Bore in the bushing for idler shaft assembly is 31.811 0.013 mm (1.2524 0.0005 inch).
Installation depth is 1.5 0.5 mm (0.06 0.02 inch).
Position of bushing joints from the centerline through the bearing bores is 45 15 degrees.
F 2 4M-3248 Hollow Dowel Extension of the hollow dowel from the oil pump cover is 6.0 0.5 mm (0.24 0.02 inch).
G 2 7N-2043 Dowel Extension of the dowel from the oil pump cover is 6.0 1.0 mm (0.24 0.04 inch).

Specifiion for 379-5364 Turbocharger Gp
Item Qty Part Specifiion Description
1 - - Use the following procedure in order to tighten the clamp assembly:
1. Tighten to
14.0 1.5 N m (123.9 13.3 lb in).
2. Gently tap around the clamp assembly.
3. Again, tighten to
14.0 1.5 N m (123.9 13.3 lb in).
Illustration 2 g03370899
Table 2
Item Qty Part Specifiion Description
2 1 7W-2297 Clamp As Use the following procedure in order to tighten the clamp assembly:
1. Tighten to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
2. Gently tap around the clamp assembly.
3. Again, tighten to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
3 1 9N-2038 Turbine Clamp As Use the following procedure in order to tighten the clamp assembly:
1. Tighten to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
2. Gently tap around the turbine clamp assembly.
3. Again, tighten to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
