Product Details:
|
Material: | Pu Nbr Ptfe | Colour: | Black |
---|
2460658 2460659 2463425 2463426 2463427 2463429 2463430 2463431 2463432 2463434 2463435 2463437 2463438 2463439 2463440
7X2742 - KIT-Seal 1939260 2460659 8C6366 fit

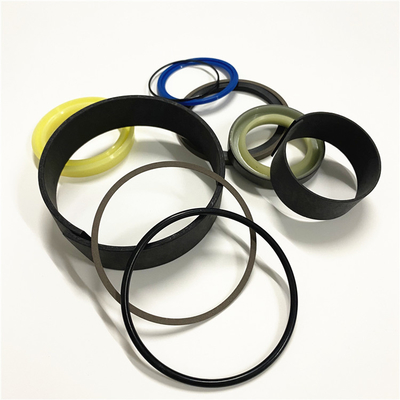

2463440 Aftermarket Hydraulic Cylinder Seal Kit by Kit King USA
Kit King USA Meets or exceeds OEM specifiions || Provides great performance and wear life || For professional and reliable cylinder repairs || Entire kit is paired for your appliion || Authentic aftermarket seals by Kit King USA
Specifiion for 379-3503 Tilt Cylinder Gp
Item Qty Part Specifiion description
1 1 167-2301 U-Cup Seal Lubrie the sealing lip lightly with the lubricant that is being sealed.
2 1 167-2185 Buffer Seal As Lubrie the sealing lip lightly with the lubricant that is being sealed.
3 1 233-0618 Wiper Seal Lubrie the sealing lip lightly with the lubricant that is being sealed.
4 1 140-0176 Wear Ring Bore before assembly is 60 mm (2.3 inch).
Thickness is 1.50 0.03 mm (0.059 0.001 inch).
5 - - Before assembly, apply green Loctite 609 to the wiper seal groove.
6 1 2J-3950 Locknut Lubrie the threads with the clean grease.
Torque to 1600 340 N m (1180 251 lb ft).
A 1 380-1615 Tilt Cylinder As Bore diameter is 110.00 0.08 mm (4.331 0.003 inch).
B 1 269-3237 Head Bore diameter is 60.28 0.03 mm (2.373 0.001 inch).
7 Lubrie the threads with the clean grease.
Torque to 600 130 N m (443 96 lb ft).
C 1 380-1616 Rod As Diameter is 59.950 0.038 mm (2.3602 0.0015 inch).
