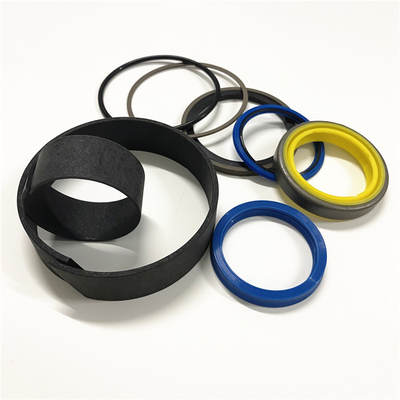

SEAL KITS---
BOOM CYL SEAL KIT . ARM CYL SEAL KIT . BUCKET CYL SEAL KIT
MAIN PUMP SEAL KIT . HYDRAULIC PUMP SEAL KIT . PIOLVE VALVE SEAL KIT.
GEAR PUMP SEAL KIT VALVE SEAL KIT .PUMP PLUNGE SEAL KIT .
.CONTROL VALVE SEAL KIT. SWING MOTOR SEAL KIT .. TRAVEL MOTOR SEAL KIT .
ADJ CYL SEAL KIT. CENTER JIONT KIT BREAKER SEAL KIT

Oil Seal -- TC TB TCV TCN DB DC DCY TC4Y ISPID BABSL

Piston seal : SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS , OK SELA OUY D-8

Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6
　
U Seal : UPI UPH USH USI V99F V96H UN

Buff Seal : HBTS HBY HBTTS D-14

Wiper Seal : DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY DH ME-2 ME-8

Wearing Ring : WR KZT RYT

　
Rotary Seal : ROI D-14 SPN

Back Up Ring : N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3

O Ring : Oring Kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9series M 2.4 series

M 3.0 series M4.0 series

Piston seal : SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS , OK SELA OUY D-8

Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6

Valve Pusher Floating oil seal Bushing hydraulic cylinder seals cylinder seal kits

Illustration 1 g02812678
Table 1
Specifiion for 338-3523 Turbocharger Gp
Item Qty Part Specifiion Description
1 4 268-2960 Clamp As Use the following procedure in order to tighten the clamp assembly:
1. Before assembly, apply Loctite C5A cooper anti-seize on the threads and bearing surfaces.
2. Torque to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
3. Gently tap around the clamp assembly.
4. Again torque to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
2 4 6L-3005 Band Clamp Use the following procedure in order to tighten the band clamp:
1. Torque to
7.5 1.0 N m (66.4 8.9 lb in).
2. Gently tap around the band clamp.
3. Again torque to
7.5 1.0 N m (66.4 8.9 lb in).
3 16 5P-7128 High Temperature Bolt Before assembly, apply Loctite C5A cooper anti-seize on the threads and bearing surfaces.
4 16 2N-2766 Locknut Torque to
55 5 N m (41 4 lb ft).
5 4 9N-2038 Turbine Clamp As Use the following procedure in order to tighten the turbine clamp assembly:
1. Before assembly, apply Loctite C5A cooper anti-seize on the threads and bearing surfaces.
2. Torque to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
3. Gently tap around the turbine clamp assembly.
4. Again torque to
12.4 to 14.7 N m (109.7 to 130.1 lb in).
