Product Details:
|

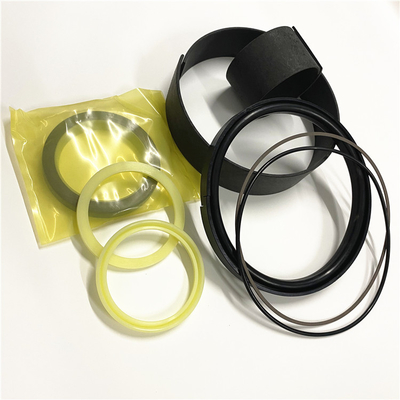

| Material: | Pu Nbr Ptfe | Clour: | Black Blue |
|---|
8T1428 8T1429 8T1430 8T1431 8T1432 8T1433 8T1434 8T1435 8T1436 8T1437 8T1438 8T1439 8T1440 8T1441 8T1442 8T1443 8T1444
(1) 2N4375 Spring for governor return: Length under test force ... 5.17 in.(131.3 mm)Test force ... 44.3 to 50.3 lb.(20.1 to 22.8 kg)Free length after test ... 3.63 in.(92.2 mm)Outside diameter ... 1 in.(25.4 mm)(2) Difference between dimension (A) (governor flyweights in extreme inner position) and dimension (B) (governor flyweights in extreme outer position) must not be more than ... .010 in.(0.25 mm)(3) 6B7342 Shim.(4) Clearance between governor drive gear and governor pinion gear (backlash) ... .002 to .006 in.(0.05 to 0.15 mm) To make an adjustment between governor drive gear and governor pinion gear add or remove shims (3) as necessary.
Various models of excavator
| 307 | 329 | ||
| 307B | 336 | ||
| 308B | 330D | ||
| 311 | 345B | ||
| 311B | 350 | ||
| 312 | 400 | ||
| 312B | 450 | ||
| 320 | E110B | ||
| 320B | E120 | ||
| 320C | E120B | ||
| 320D | E180 | ||
| 325 | E200B | ||
| 325B | E240 | ||
| 325C | E240B | ||
| 330 | E300B | ||
| 330B | 330C |
