Illustration 1 g02139457
Lubriion system schematic
(1) Engine oil filters
(2) Cylinder head
(3) Turbocharger
(4) Engine block
(5) Engine oil pump group
(6) Engine oil pump
(7) Pressure relief valve for engine oil pump
(8) Engine oil pan
(9) Suction screen
(10) Engine oil cooler
(11) Bypass valve for engine oil cooler
(12) Bypass valve for engine oil filters Engine oil is drawn through suction screen (9) to engine oil pump (8). The engine oil pump is a gear-type pump which generates pressure for the engines lubriion system. The engine oil pump is bolted to the bottom of the engine block inside the engines crank. The front gear train of the engine drives the engine oil pumps gear. A pressure relief valve (7) is loed within the engine oil pump group. The pressure relief valve controls the engine oil pressure to a maximum of 600 kPa (87 psi). Excess engine oil that is bypassed by the oil pump is returned to engine oil pan (8). Pressurized engine oil is directed through engine oil cooler (10). The oil cooler lowers the temperature of the engine oil before the oil passes through engine oil filters. When a pressure differential of approximately 144 kPa (21 psi) is reached, bypass valve (11) will allow oil to bypass the cooler.Engine oil filters (1) clean the oil before the oil enters the passages that are within the engine block. When a pressure differential of approximately 129 kPa (19 psi) is reached, the bypass valve will allow oil to bypass the oil filters. Two spin-on oil filters are used for these engines. The filters are loed on the right side of the engine.
Illustration 2 g02140579
Left side view of engine

The erpillar 6g3206 Seal Ring is a robust, reliable seal designed specifically for use in erpillar excavators. This seal ring offers excellent protection against dirt, dust, and other particles that could otherwise enter the hydraulic system of the excavator. It is constructed from heavy-duty materials to ensure a long-lasting, leak-proof seal. The erpillar 6g3206 Seal Ring is easy to install and does not require any additional tools. Its unique design ensures a perfect fit and maximum efficiency. The seal ring has a lip around its circumference which creates a barrier between the interior of the machine and the outside environment. This helps protect the system from debris and contaminants while ensuring a tight seal.
(13) Oil supply to the cylinder heads
(14) Oil supply to idler gear on rear gear train
(15) Main oil gallery
(16) Oil supply to main bearing journals
(17) Oil port to main gallery
(18) Oil supply for shaft Engine oil flows from the oil filters into the oil gallery through port (17). These ports are loed on both sides of the engine block. Main oil gallery (15) supplies oil to crankshafts main bearing journals (16) through passages that are drilled into the engine block. Passages that are drilled into the crankshaft connect the flow of oil from the main bearings to the rod bearings. A passage that is drilled through each of the piston rods connects the flow of oil from the rod bearing to the piston pin bearing. Oil passage (14) allows oil to flow. Piston cooling jets are also utilized in order to reduce the temperature of the piston. Each of the cooling jets direct a stream of engine oil to the bottom side of the piston.Also, engine oil flows into passages that are loed directly above the crankshafts main journals. 1, 2 and 7. The first two passages provide lubriion for the camshaft gear assembly shaft (18).
Illustration 3 g02167154
Top view of engine

Product Description:

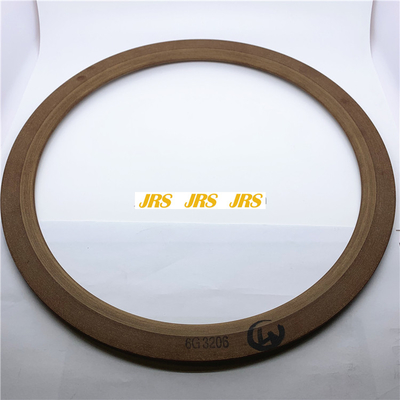

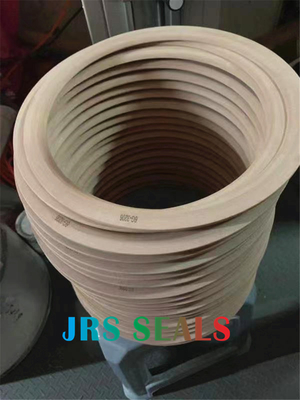

Introducing our high-performance Wear Ring WR designed specifically for CAT excavator loaders. This Wear Ring WR kit includes a carefully selected range of part numbers, such as 6G3206, 6G3207, 6G3205, 3289669, 3289668, 5T7133, 8R1016, 3K0109, 2K0713, and 8J8375. Engineered to deliver exceptional durability and compatibility, our Wear Ring WR ensures optimal performance and extended service life for your CAT excavator loader.
