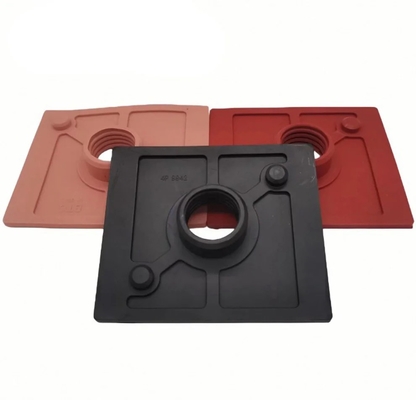

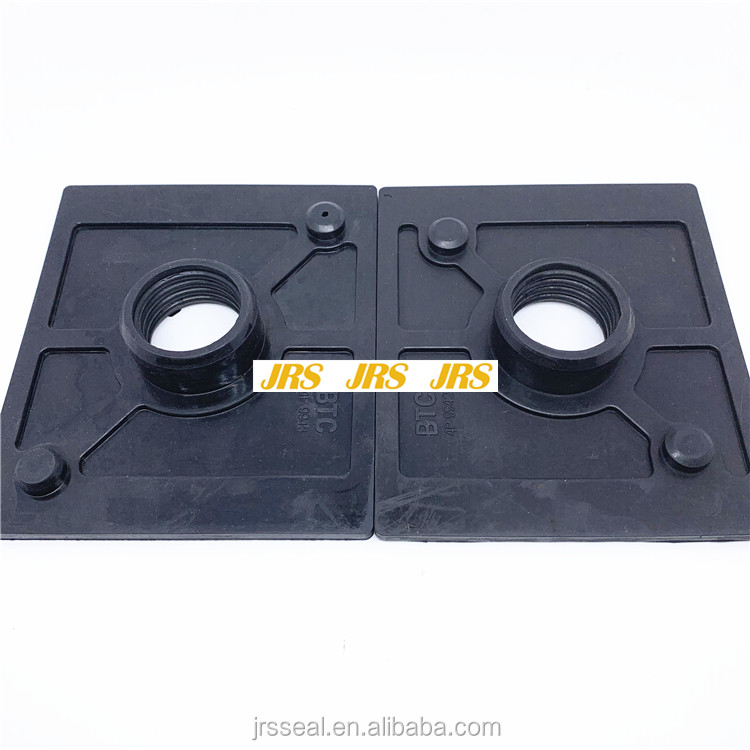

CA4P9942 4P9942 4P9943 Loader PU NBR PTFE Material

CA4P9942 4P9942 4P9943 Loader PU NBR PTFE Material​

4P9942 4P9943 NBR loader

4P9942 SEAL-END TANK parts 16H, 16H NA, 3176B, 3176C, 3196, 5130, 5130B, 517, 5230, 5230B, 527, 561M, 578, 621G, 623G, 627E, 627F, 627G, 631G, 637E, 637G, 65, 657E, 65C, 65E, 75C, 75D, 75E, 814F, 815F, 816F, 824G, 825G, 826G, 8... SEAL

Alternative (cross code) number:
CA4P9942
4P-9942
4P9942

During normal operation, each pressure sensor outputs a signal voltage that accurately represents the pressure that is sensed by the sensor. However, certain circuit conditions can cause a signal voltage to become inaccurate.During each key on event of at least two seconds, the Electronic Control Module (ECM) evaluates the signal voltage from each pressure sensor. The ECM compares each signal voltage to a reference voltage. The reference voltage that is used depends on the sensor.If a signal voltage is close to the reference voltage, the ECM will internally adjust the signal voltage. The internal adjustment causes the pressure value for the sensor to be correct. This process is called automatic sensor calibration.If a signal voltage is not close to the reference voltage, the ECM will not internally adjust the signal voltage. The ECM will set a fault code that indies there is a problem with the signal voltage.Table 1 indies the maximum error that is permitted for each sensor, and the reference for that sensor. Refer to the troubleshooting procedure to determine the root cause of the incorrect signal voltage.
Table 1
J1939 Code and Description CDL Code and Description Comments
101-13
Crank Air Pressure Sensor : Out of Calibration 101-13
Crank Air Pressure Sensor : Out of Calibration During key on, the signal voltage from the crank air pressure sensor indied a crank air pressure greater than +/- 1.5 kPa (0.2 psi).
There is not a reference sensor for this sensor.
2452-13
Generator Total Real Power : Out of Calibration N/A The code will be active when using a secondary generator power sensor and the values between the PWM and analog signal differ by more than 100 kW.
3563-13
Engine Intake Manifold #1 Absolute Pressure : Out of Calibration 1785-13
Intake Manifold Pressure Sensor : Out of Calibration During key on, the signal voltage from the intake manifold pressure sensor indied an intake manifold pressure greater than +/- 18 kPa (3 psi).
Reference sensor: Atmospheric Pressure Sensor
Table 2
Troubleshooting Test Steps Values Results
1. Check for Codes
Note: The engine coolant temperature must be greater than 0° C (32° F) before beginning this procedure.
A. Connect ® Electronic Technician (ET) to the service tool connector.
B. Look for active codes that are associated with the system for the event code.
Codes
Result: An associated code is active.
Repair: Troubleshoot any associated codes before continuing with this test.
Result: A code is active or logged.
Proceed to Test Step 2.
2. Check for Debris
A. Turn the keyswitch to the OFF position.
B. Check the sensor for debris.
C. If applicable, check the reference sensor for debris.
D. Check the sensor measurement port for blockage by debris.
E. If debris is found, clear the debris from the measurement port and replace the sensor.
F. Connect ET.
G. Use ET to monitor the following code:
- Codes
Debris
Result: The sensor measurement port is not blocked by debris.
Proceed to Test Step 3.
Result: A -13 code is not active.
Return to service.
Result: A -13 code is active.
Repair: Replace the sensor. If more than one -13 code is active and the codes have a reference sensor, replace the reference sensor.
If the problem is
