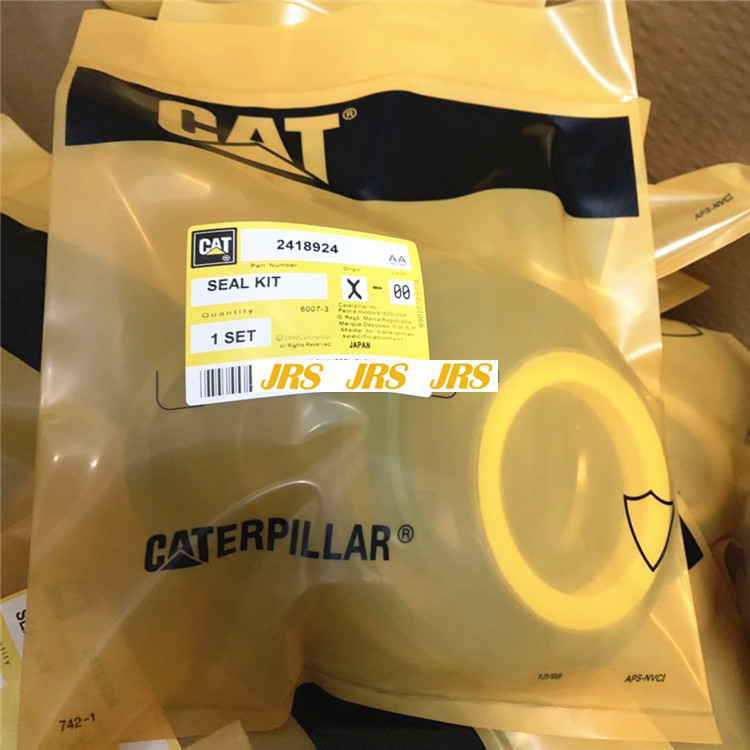

2418924 LIFT TIFT STEERING for loader Hydraulic Cylinder Seal

Feature of Hydraulic Cylinder Seal Kits

1. Pressure flexibility and contamination prevention

2. Leakage Control and Blowout Prevention

3. Affordability and Simple Maintenance

4. Highly Adaptable and Durable

5. Water-Resistance and Safety

Use this procedure in order to troubleshoot the emergency stop system. Or, use this procedure if the diagnostic code in Table 1 is active or easily repeated.
Table 1
Diagnostic Codes Table
J1939 Code and Description Conditions which Generate this Code System Response
970-2 Engine Auxiliary Engine Shutdown Switch : Erratic, Intermittent, or Incorrect The two inputs from the emergency stop switch are in the opposite state. The code is logged. The Electronic Control Module (ECM) receives two signals from the emergency stop switch. The signals allow the ECM to determine the status of the emergency stop switch. The ECM will shut down the engine when both of the signals are open. When both of the signals are connected to the −Battery the emergency stop switch is not active, and the engine will run. If two different signals are detected during the powerup, the ECM will determine that one of the signals is incorrect. A diagnostic code will be logged and a diagnostic code will remain active. The engine will continue to run when the ECM detects two different signals. If both of the signals are open, the engine will stop.The customer can install multiple emergency stop switches. When the Engine Control Switch (ECS) is turned to the ON position, the engine will begin the sequence for start-up.When the emergency stop switch is activated, the ECM will stop firing the injectors. The engine will stop. When an emergency stop is received by the ECM, the ECM will activate the output for the solenoid valve that controls the air shutoff valve. When the solenoid valve activates, the air shutoff valve closes removing the intake air to the engine. Manually open the air shutoff valve in order to start the engine.Note: The air shutoff is optional. Set the programmable parameter with Electronic Technician (ET) in order to enable the air shutoff. The 970-31 Engine Auxiliary Engine Shutdown Switch event code will be set when the remote emergency stop switch is activated. This event will prevent engine operation. Electrical power to the ECM must be removed for three seconds in order to clear this event.
