Product Details:
|
| Material: | Pu Nbr Ptfe | Colour: | Black |
|---|

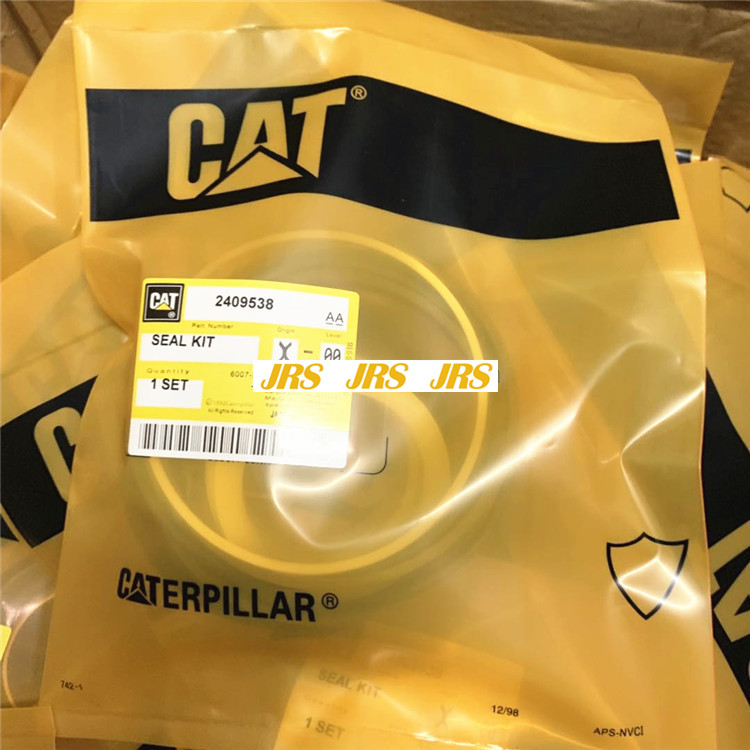

2409538 LIFT TIFT STEERING for loader Hydraulic Cylinder Seal
2409538 KIT-SEAL parts 12H, 12H NA, 140H, 140H NA, 330B L, 330C, 330C L, 330D L, 336D L, 336E HVG, 365B, 365C L, 385B, 385C L, 416B, 416C, 426C, 428B, 428C, 436C, 438C, 446B, 515, 525, 527, 814F, 814F II, 815B, 815F, 815F I...
Alternative (cross code) number:
CA2409538
240-9538
2409538
Our Advantages
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits for 20 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
FAQ
Q: Could I make it according to my structure drawing?
A: Of course we can make from your structure drawing.
Q: Can I negotiate the Prices?
A: Sure, we may consider discounts for bulk order of products.
Q: Where has your product sold to?
A: Our products have sold to America, India, Korea, Africa and other countries over the world.
Q: Could you make it from other material?
A: Yes,we can provide you FKM, PTFE, etc.according to your requirements.
Illustration 1 g03035297
Emergency stop schematic
Table 2
Troubleshooting Test Steps Values Results
1. Inspect the Electrical Connectors and the Wiring
A. Turn the main disconnect switch to the OFF position.
B. Verify that the air shutoff mechanisms are set to the OPEN position.
C. Thoroughly inspect the ECM connectors. Also, inspect the connectors at the air shutoff mechanism that are for the solenoids. Also, inspect the switches for the air shutoff. Refer to Troubleshooting, "Electrical Connectors - Inspect"
D. Perform a 45 N (10 lb) pull test on each of the wires that are associated with the circuit for the air shutoff system.
E. Check the allen head screw on each ECM connector for the proper torque. Refer to the diagnostic functional test Troubleshooting, "Electrical Connectors - Inspect" for the correct torque values.
F. Check the harness and the wiring for abrasion and for pinch points from the air shutoff solenoid to the ECM.
Connectors
Results: The connectors and wiring appear to
