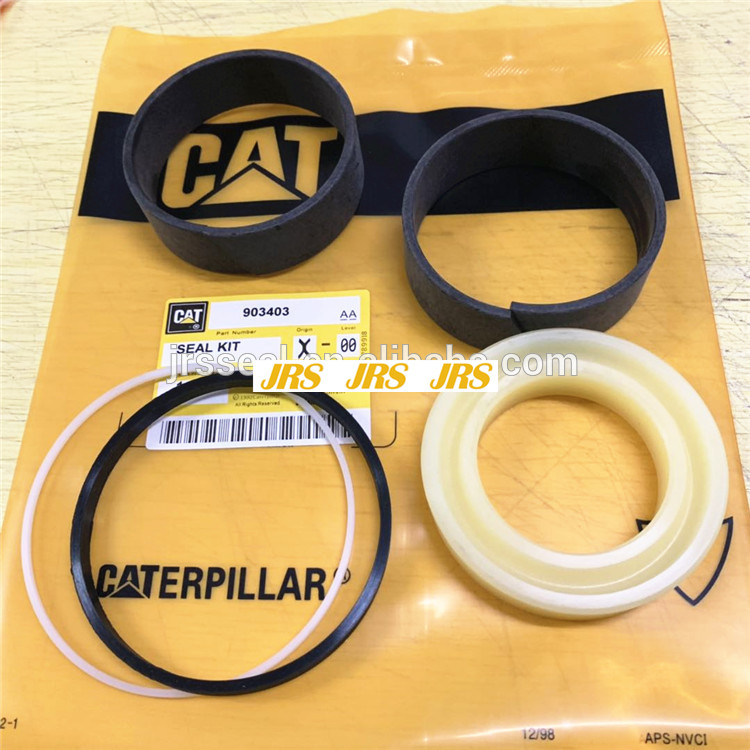

6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997

6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997
6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997

Large Image :  6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997

Product Details:
Place of Origin: CHINA
Brand Name: WG CTP SKF
Model Number: 6H6269 5M4998 D3G D4D D5S S6S 5H-9467 Fit For 3306
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 3-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000
Contact Now

6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997

Description

6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306



6H6269 RING parts 215B, 225, 227, 229, 571G, 572G, 955K, 955L, 963, 973, 977D, 977H, 977K, 977L, D6C, D6D, D6E, D6E SR, D6G, D6G SR, D6G2 LGP, D6G2 XL, D7F, D7G, D7G2, FB221 RING





Compatible equipment models: 6H6269:

EXCAVATOR 215B 225 229
LOGGER 227
PIPELAYER 571G 572G
TRACK FELLER BUNCHER FB221
TRACK LOADER 955K 955L 963 973 977D 977H 977K 977L
TRACK-TYPE TRACTOR D6C D6D D6E D6E SR D6G D6G SR D6G2 LGP D6G2 XL D7F D7G D7G2

6H6269 5M4998 D3G D4D D5S S6S 5H9467 Fit For 3306 5M2997 0
Assembly Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
B 1P-1861 Retaining Ring Pliers 1
D 138-9299 Seal Guide 1
E 139-0088 Seal Installer 1
F 169-5464 Quick Cure Primer -
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Illustration 1 g01132114
Illustration 2 g01768596
Use Tooling (F) in order to clean shaft assembly (9) and the counterbore in housing assembly (7) .
Use Tooling (D) in order to install oil seal (8) . Install the oil seal with the part number toward the housing assembly. Ensure that the oil seal is flush with the housing assembly. Do not lubrie the oil seal.
Install inner bearing (10) onto shaft assembly (9) .
Install shaft assembly (9) into housing assembly (7) .
Use Tooling (B) in order to install retaining ring (11) .
Use Tooling (E) and a suitable press in order to install water seal (6) onto shaft assembly (9) . Install the water seal with the part number Upward. Ensure that the water seal is flush against the housing assembly. Do not lubrie the seal.
Use a suitable press in order to install impeller (5) onto shaft assembly (9) . The top of impeller (5) should be installed to Depth (X) below the surface of the housing assembly. Depth (X) is 8.40 0.25 mm (0.331 0.010 inch).
Use a suitable press in order to install gear (12) .
Install bearing (13) . Ensure that the bearing is flush with the gear.
Install hex washer (14) and hex socket head bolt (15) .
Install O-ring seal (2) and O-ring seal (4) in cover (3) . Install cover (3) on housing assembly (7) .
Install elbow assembly (1) .End By: Install the water pump. Refer to Disassembly and Assembly, "Water Pump - Install".
