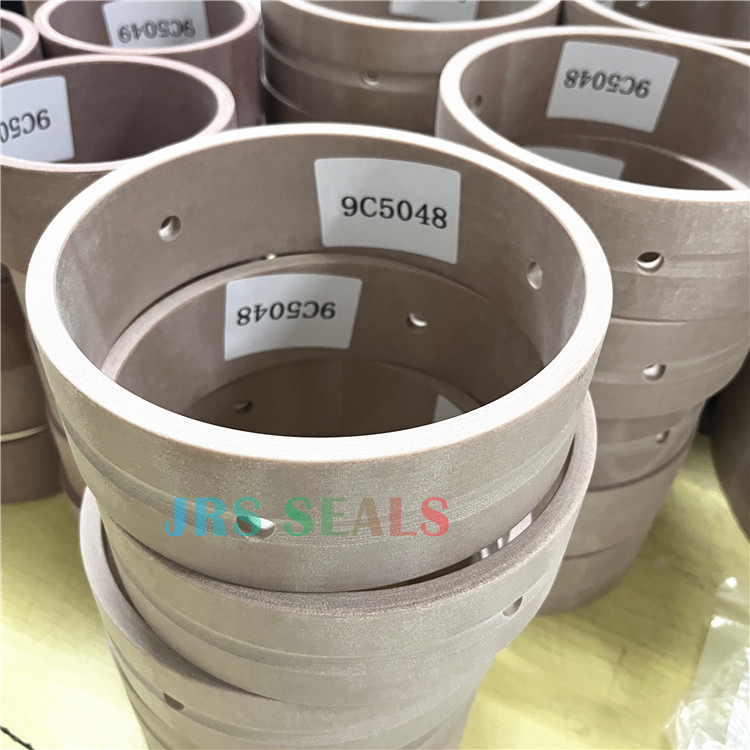

9C5048 SEAL WR WEARING PTFE WEAR RING LOADER

Before installing 9C5048 9C-5048, fully disassemble the hydraulic cylinder of the excavator or loader. Use a lint-free cloth and isopropyl alcohol to clean all cylinder components—including the barrel, rod, piston, and seal groove—to remove dirt, old seal residues, or metal shavings. Contaminants left on these surfaces can scratch the PTFE composite of 9C5048 9C-5048, leading to reduced wear resistance. Next, inspect the cylinder rod for scratches, pitting, or bent sections using a surface roughness gauge; the rod finish must be between 0.15 and 0.6 μm to ensure optimal contact with 9C5048 9C-5048. If defects are found, repair or replace the rod before proceeding. Finally, verify that 9C5048 9C-5048 matches the machine’s OEM specifications (checking outer diameter, inner diameter, and thickness) to confirm it is the correct component.

Install 9C5048 9C-5048 using only dedicated plastic or rubber installation tools—avoid metal tools like hammers or screwdrivers, which can chip the PTFE composite. First, apply a thin layer of PTFE-compatible hydraulic grease to the inner and outer surfaces of 9C5048 9C-5048. This reduces friction during installation and creates an initial barrier against contaminants. Then, carefully slide 9C5048 9C-5048 into the cylinder’s seal groove, ensuring it is fully seated and aligned with the groove edges—misalignment will cause uneven wear and reduced load support. For split-style grooves (common in loader tilt cylinders), press the two ends of 9C5048 9C-5048 together gently until they fit snugly, avoiding overstretching. After installation, reassemble the cylinder in reverse order of disassembly, tightening bolts to the machine’s recommended torque (typically 30-40 N·m for excavator boom cylinders). Conduct a pressure test by applying 500 psi of hydraulic pressure; no leaks around 9C5048 9C-5048 and smooth cylinder movement indicate successful installation.
