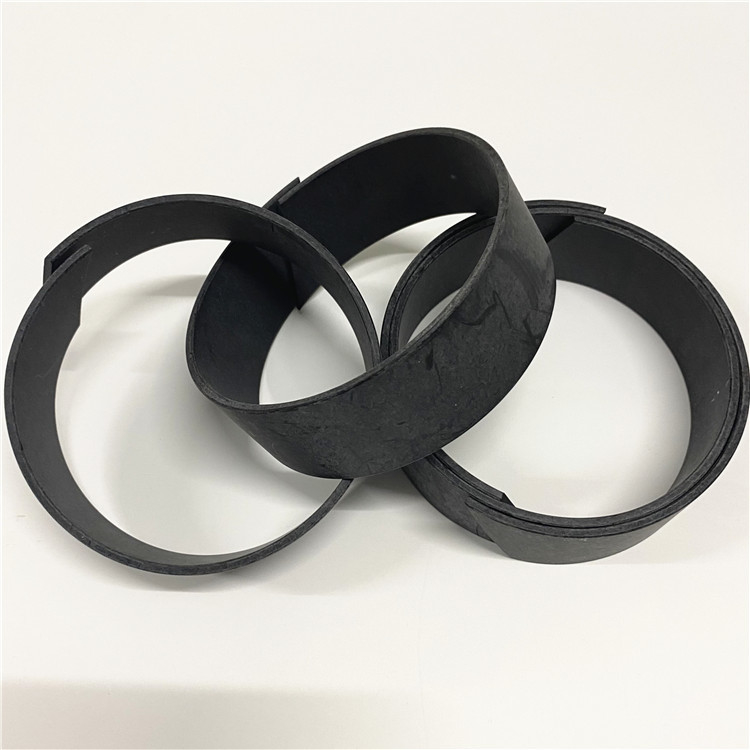

8T6746 1U2218 9T0096 6J2797 BLACK WEAR RING FOR LOADER SEAL KIT

8T6746 1U2218 9T0096 6J2797 BLACK WEAR RING FOR LOADER SEAL KIT

8T6746 RING-WEAR parts 3608, 980C, 980F, 980G, 980G II, 980H, 988B, 988F, 988F II, D10, D10N, D11N, D11R, D11T, D8L, D8N

9T0096 RING-WEAR parts D8N, D8R, D8R II, D8T, D9N

1U2218 RING-WEAR parts 5130, 5130B, 950H, D8L, D8N

Replacement for Compatible With Fits RING WEAR 6J2797 NEW
FDGDFG Replacement for Compatible With Fits RING WEAR 6J2797 NEW

ARTICULATED TRUCK D250D D250E D300D D300E
BACKHOE 931
BACKHOE LOADER 416 416B 416C 416D 420D 420E 424D 426 426B 426C 428 428B 428C 428D 430D 430E 432D 436 436C 438B 438C 438D 442D 446 446B 446D 450E
BULLDOZER 3S
CHALLENGER 65 65C 65E 75 75C 75D 75E 85C
COMPACT WHEEL LOADER 910 910E 910G 914G
EXCAVATOR 322B L 322C FM 324D FM LL 325B L 325D FM 325D FM LL 330B L 330C 330C L 330D FM 330D L 345B II 345B L 345C L 350 350 L 365B 365C L 375 375 L 385B 385C L 568 FM LL
FRONT SHOVEL 5080
GRAPPLE-LOG LOADING GH52 GLL60
INTEGRATED TOOLCARRIER IT12B IT14G2 IT18 IT18B IT18F IT24F IT28F IT28G
LANDFILL COMPACTOR 816F 816F II
LOAD HAUL DUMP R1300 R1300G R1300G II R1600 R1600G R1600H R1700G
MOBILE HYD POWER UNIT 336D L 336E HVG 345C L 349E L HVG
MOTOR GRADER 120K 120M 12G 12H 12H ES 12H NA 12K 12M 130G 140G 140H 140H ES 140H NA 140K 140K 2 140M 143H 14G 14H 14H NA 14M 160H 160H ES 160H NA 160K 160M 163H 163H NA 16G 16H 16H NA 16M 24H 24M
PIPELAYER 583R 583T PL83
SOIL COMPACTOR 815B 815F 815F II
TRACK LOADER 931B 931C 931C II 933 933C 935C 939 939C 941 943 951B 953 953C 953D
TRACK SKIDDER 527 D4HTSK II D4HTSK III D5HTSK II
TRACK-TYPE TRACTOR 30/30 D10N D10R D10T D10T2 D11N D11R D11T D3B D3C II D3C III D4C III D4H D4H XL D5C III D5H D5H XL D5M D5N D5R LGP D6M D6N D6N LGP D6R III D6T D6T LGP D6T LGPPAT D6T XL D7E D7E LGP D8N D8R D8R II D8T D9N D9R D9T DEUCE
UNDERGROUND ART TRUCK AD30
WAGON 613C II
WHEEL DOZER 814B 814F 814F II
WHEEL LOADER 918F 920 924F 924G 924GZ 924H 924HZ 928H 930K 950 966D 966F 966F II 970F 980G 980G II 980H 988G 988H
WHEEL SCRAPER 613C 613C II
WHEEL SKIDDER 515 518 518C 525 525B 525C 525D 530B 535B 535C 535D 545 545C 545D 555D
WHEEL TRACTOR 613C 613C II
WHEEL TRACTOR-SCRAPER 613G

Illustration 1 g03017336
Top view
Table 1
Specifiion for 379-4835 Valve Mechanism Gp
Item Qty Part Specifiion Description
1 2 3J-9196 Jam Nut Torque to 70 15 N m (52 11 lb ft).
2 2 7E-6507 Retainer Nut Start tightening the retainer nuts of the cap assembly by hand so that the terminal studs are not cross threaded.
Torque to 2.50 0.25 N m (22.13 2.21 lb in).
3 1 317-1121 Jam Nut Torque to 120 15 N m (89 11 lb ft).
4 1 100-3878 Injector Spring Length under test force is 85.00 mm (3.346 inch).
Test force is 300 25 N (67 6 lb).
Free length after test is 87.65 mm (3.451 inch).
Illustration 2 g03017337
Table 2
Item Qty Part Specifiion Description
5 1 234-2273 Rocker Arm Shaft Diameter is 45.000 0.013 mm (1.7717 0.0005 inch).
B - - After installation, bore of the bushing in the injector rocker arm assembly (6) is 45.077 0.015 mm (1.7747 0.0006 inch).
C - - After installation, bore of the bushing in the valve rocker arm assembly (7) is 45.077 0.015 mm (1.7747 0.0006 inch).
8 1 6J-2245 O-Ring Seal Before assembly, lubrie the bore lightly with the lubricant that is being sealed.
