Product Details:
|
| Material: | PTFE,NBR,PU | Color: | Customer Required |
|---|---|---|---|
| Packing: | Plastic Bag | Oem: | Welcomed,yes |
| Feature: | Oil Resistance | Condition: | 100%new |
| Highlight: | hydraulic cylinder rod seal kit,CTC compatible rod seal,heavy-duty hydraulic seal kit |
||

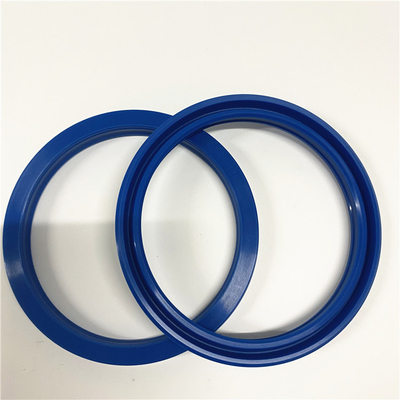

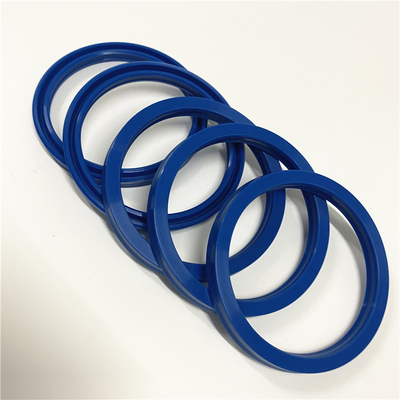

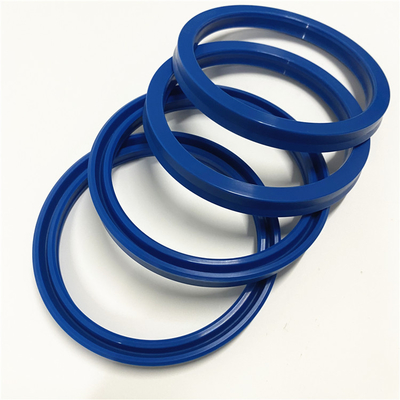

ROD SEAL CTC 1709865 1915646 2U9113 3E4205 3E4225 3E4233 3E4234 5J8400 6J1425 6J1475 1948364 3160008 2160009 3E4235 3E42
1709865 SEAL-U-CUP parts 322B L, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 325B L, 325C FM, 325D FM, 325D FM LL, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336E HVG...
1709865 Seal U Cup Fits 7Y4942 322B L 324D FM 324D FM LL 325B L 325C
| Product Info | |
| Name | Hydraulic Seals |
| Material Type | NBR,EPDM,SILICONE,FKM,SBR,NR,etc. |
| Hardness Range | 20-90 Shore A |
| Color | Any color is OK |
| Size | As per drawing dimensions |
| Tolerance Standard | ISO2768-M or ISO3302-1:2014 CLASS M2 |
| Material Characteristic | See below rubber materials properties |
| Appliion | For all industries |
| Certifies | UL, NSF61, KTW, W270, ACS, AS4020, WRAS, EN681, EN549, ROHS, REACH, USP CLASS VI |
| OEM / ODM | Available |
| Packing Details | PE plastic bags then to the carton / as per your request |
