Product Details:
|
| Material: | PU | Color: | Customer Required |
|---|---|---|---|
| Appliion: | Excavator | Type: | Hydraulic Breaker Seal Kit |
| Highlight: | hydraulic cylinder rod seal kit,replacement hydraulic cylinder seals,heavy-duty rod seal kit |
||

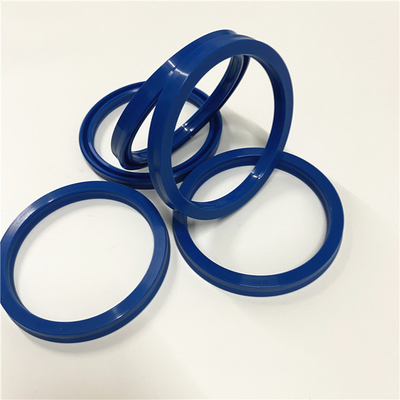

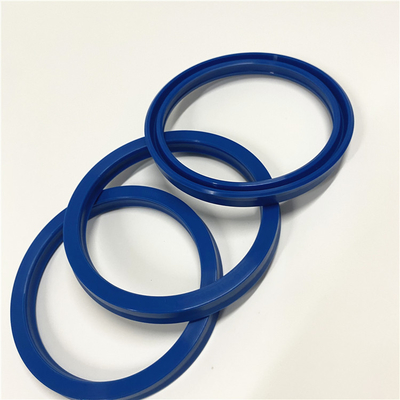

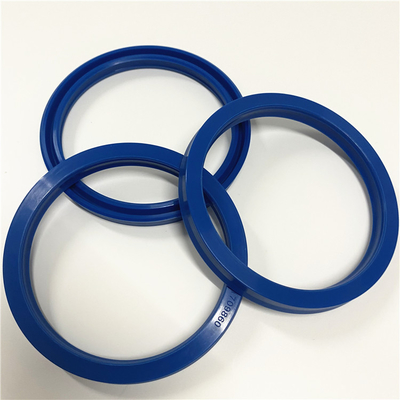

CTC1672326 1709860 1P4880 0961587 2160004 3E4191 3E4192 5J8375 3E4222 3E4232 3G5051 1672327 9J1340 1672338 ROD SEAL
1709860 SEAL-U-CUP parts 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320D, 320D FM, 320D FM RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 322C, 323D L, 323D LN, 323D SA, 323E L, 324D L, 325B L, 325C, ...
1672327 SEAL-U-CUP parts 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, 963D, TK711, TK721, TK722, TK732, TK741, TK751, TK752
Petroleum Engine:
3512C (S/N: LLA1-UP)
Engine News SEBD9823, 27 October 2012, "New Software Is Used for a 3512C Petroleum Engine". The original article was revised to add the former part number and the effective serial number.Description of Change: The new software has an increased range for the governor gains in order to optimize the response of the speed control.Adaptable To: The new 422-8050 Engine Ratings Electronic Software Gp replaces the former 355-5370 Engine Ratings Electronic Software Gp in the engine that is listed above.The new software is adaptable to the above engine back to first production.The new software is effective with LLA03666.
Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 367-3070 Fuel Injector Installer and Removal Tooling 2 Start By:
Remove the valve mechanism cover. Refer to Disassembly and Assembly, "Valve Mechanism Cover - Remove and Install".
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publiion, NENG2500, "Dealer Service Tool alog" for tools and supplies suitable to collect and contain fluids on ® products.Dispose of all fluids according to local regulations and mandates.
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Remove the plug at the rear of the cylinder head. Allow the engine oil to drain from the hole in the cylinder head before the unit injector is removed.
Illustration 1 g01148880
Use a small flat head screwdriver to disconnect harness assembly (2) from unit injector (1).
Remove socket head bolts (3).
Illustration 2 g03030620
Install Tooling (A). Use Tooling (A) to remove unit injector (1) from the cylinder head. Note: Do not use a wire brush on the tip of the unit injector. Damage to the unit injector will occur.
Illustration 3 g01137291
Remove O-ring seals (6), (7), and (8) from unit injector (1). Remove backup rings (4), (5), and (9) from unit injector (1).
