Product Details:
|
| Material: | PTFE,NBR | Color: | Customer Required |
|---|---|---|---|
| Appliion: | Hydraulic Breaker | Type: | Hydraulic Breaker Seal Kit,soosan Series |
| Payment Terms: | T/T, Western Union | Delivery Time: | 3-15 Days |
| Highlight: | SH160 Hydraulic Cylinder Seal Kits,SH200 Hydraulic Cylinder Seal Kits,SH260 Sumitomo Seal Kits |
||

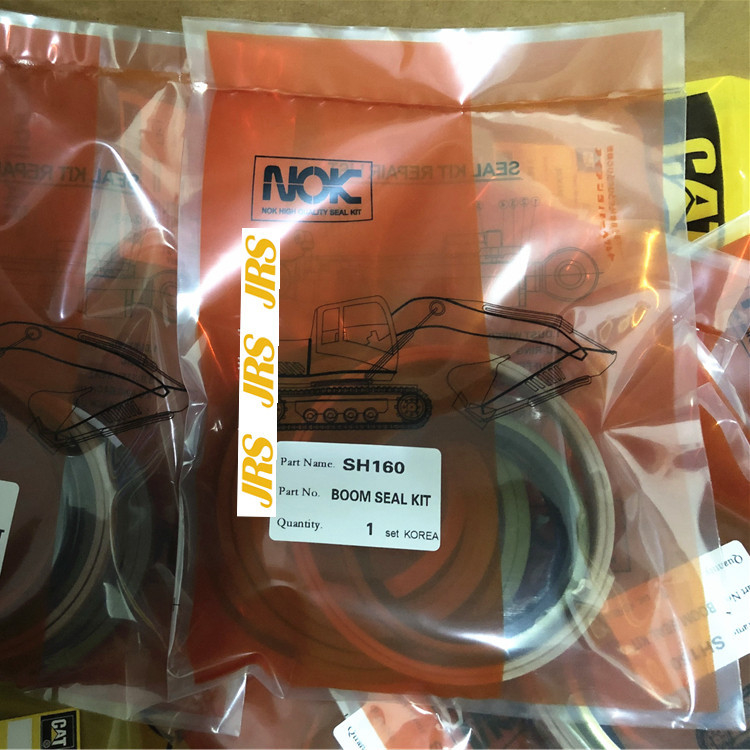

SH160 SH200 Hydraulic Cylinder Seal Kits For Sumitomo Arm Boom Bucket
SH160 F2 SH200 Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit FOR sumitomo
| Kobelco | SK03 SK05 SK03 SK09 SK12 SK15 SK60 SK60-6 SK75 SK100-3 SK100-5 SK120 SK120-3 SK130 SK160 SK200-7 SK200-3 SK200-8 SK200-6 SK210-6 SK220-1 SK210-8 SK220-3 SK220-5 |
| SK230-6 SK230-8 SK250-8 SK250-6 SK300-3 SK310-3 SK330-6 SK350-8 | |
| Sumitomo | SH60 SH75 SH100 SH120 SH120-6 SH130 SH160 SH200 SH200A3 SH220 SH260 SH280 SH300 SH340 SH430 SH450 |
| S280 S280FA S280F2 S281 S265F2 S340 | |
| Kato | HD250 HD300 HD307 HD400 HD450 HD550 HD550-3 HD700 HD700-5 HD700-7 HD700-2 HD770 HD800-7 |
| HD800SD-5 HD820-2 HD820 HD850 HD880-1 HD850 HDHD900-7 | |
| Other brands | John Deere 200C John Deere 230LC John Deere 240D John Deere 330C bob325 |
| JCB160 JCB180 JCB220 JCB330 JCB360 CLG200 LIUGONG922 Sunward60 Sunward70 | |
| TM02 TM04 TM05 TM06 TM07 TM09 TM10 TM18 TM22 GM06 GM08 | |
| NOTE: not all the models are listed here, if you need more details ,please contact us. |
System Operation Description:The fuel level sensor is a component that is installed by the customer. The sensor is a passive sensor. The sensor does not require an operating voltage from the Electronic Control Module (ECM). Use this procedure to troubleshoot the electrical system if a problem is suspected with the fuel level sensor or if any one of the diagnostic codes in the table is active or easily repeated.
Table 1
Diagnostic Codes Table
Code and Description Conditions which Generate this Code System Response
96-3 Fuel Level Sensor voltage above normal The voltage on the signal wire for the fuel level sensor is above normal. The code is logged.
96-4 Fuel Level Sensor voltage below normal The voltage on the signal wire for the fuel level sensor is below normal. When the fuel tank is full, the fuel level sensor has a resistance of 33 Ohms. When the fuel tank is empty, the fuel level sensor has a resistance of 240 Ohms. The resistance from the fuel level sensor varies between these values as the fuel level varies.The sensor's variable resistance affects the pull-up voltage that is created by the ECM. When the sensor's resistance is low, the pull-up voltage is low. When the sensor's resistance is high, the pull-up voltage is high. Refer to Table 2.
Table 2
Relationship Between the Sensor's Resistance and the Voltage on the Signal Wire
Fuel Level Resistance Approximate Voltage on the Signal Wire
Full 33 Ohms 0.15 VDC
Empty 240 Ohms 1.8 VDC The most likely electrical problem with the circuit for the fuel level sensor is a problem in the wiring harness. The next likely cause is a problem with the fuel level sensor. The least likely cause is a problem with the ECM.
