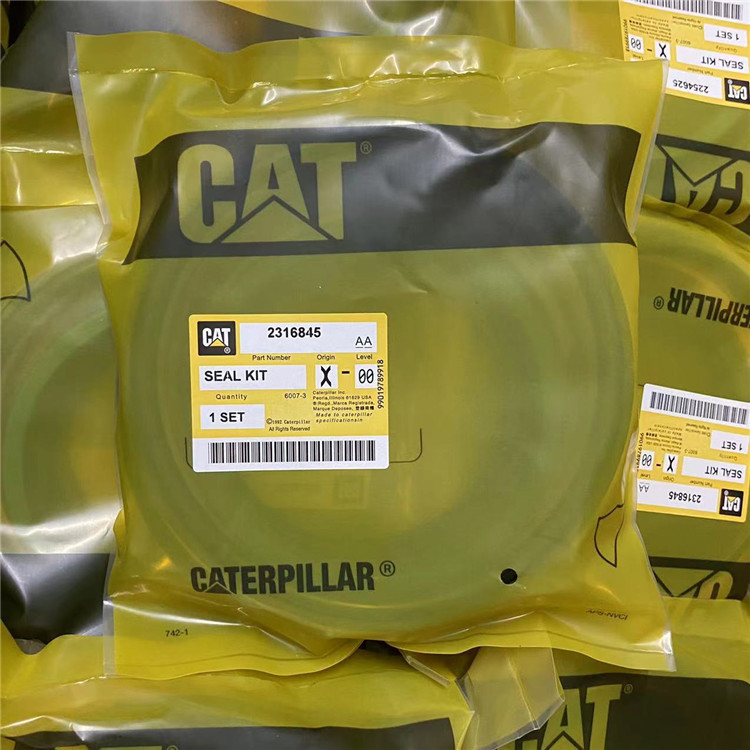

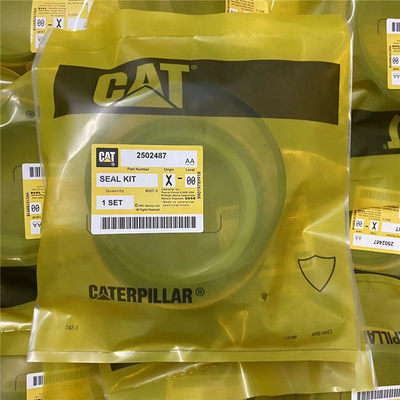

2316845 2502487 2430478 2426840 2159990 LODER KIT ARM BOOM BUCKET SEAL

2316845 2502487 2430478 2426840 2159990 LODER KIT ARM BOOM BUCKET SEAL

For Excavator 330D Arm Cylinder Seal Kit 2590768 2316845 2316844
NC Part Number: 2590768 || Appliions:For Excavator 330D Arm Cylinder

Aftermarket replacement Hydraulic Seal Kit - Stick Cylinder 336D 330DL 330D 330CLN 325CLN 330CL 325CL 330DN 336DLN 336DL 325DL 330C 325DLN 325C 2426840
Generic Compatible with Construction & Industrial(s) 325C, 325CL, 325CLN, 325DL, 325DLN, 330C, 330CL, 330CLN, 330D, 330DL, 330DN, 336D, 336DL, 336DLN Replaces OEM nos 2426840 All new, rebuilt and used tractor parts have a 1-year warranty || Please Note That Some Listings Use Stock Images As A Reference For Customers note that all OEM part numbers and logos are to be used for identifiion purposes only || agricultural and construction-machinery-spare-and-replacement-parts

Removal Procedure
Illustration 1 g02798190
Disconnect harness assemblies (1) and (2).
Illustration 2 g02798192
Disconnect tube assemblies (3).
Remove bolts (5) and remove fuel manifold (4).
Illustration 3 g03356369
Remove adapter assemblies (6). Remove sensors (7) and the O-ring seals.
Remove solenoid valves (8).
Remove cap (10) and remove connector assembly (9).
Illustration 4 g02798209
Remove nut (15 ), washer (14), and solenoid (13).
Remove cartridge assembly (12) and remove O-ring seals (11). Installation Procedure
Install fuel manifold (4) in the reverse order of removal.
Tighten nut (15) to a torque of 20 2.5 N m (177 22 lb in).
Tighten solenoid valve (8) to a torque of 50 5 N m (37 4 lb ft).
Tighten connector assembly (9) to a torque of 30 3 N m (22 2 lb ft).
Tighten cap (10) to a torque of 7.0 2.5 N m (62 22 lb in).
Tighten sensors (7) to a torque of 30 3 N m (22 2 lb ft).
Tighten adapter assemblies (6) to a torque of 17 1.5 N m (150 13 lb in).
