3769017 Hydraulic Cylinder Seal Kits 7X2825 8T6892 8T6390 3769017 2275350

3769017 KIT SEAL 7X2825 8T6892 8T6390 3769017 2275350

1 Kit Replacement Hydraulic Seal 7X2825 Compatible with 8T6892, 8T6390, 3769017, 2275350 | #AA84DL

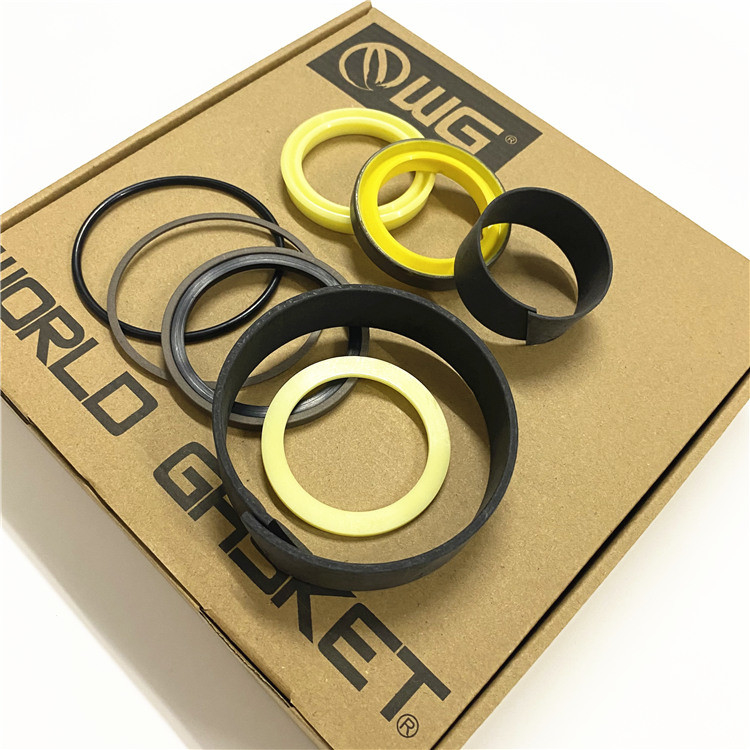

GVII You Purchasing 1 Kit Replacement Hydraulic Seal 7X2825 Compatible With 8T6892, 8T6390, 3769017, 2275350 || 100% brand new and high quality || One New Replacement Fits Integrated Toolcarrier Steering Cylinder Seal Kit that fits the following model: IT38F, Cylinder: 1050094 || Please Note: Your Seal Kit will look different Replaces | Part Number: 1857025, 3769017, 2275350 || Rod: 1 3/4" | Bore: 3"

BACKHOE LOADER 446B
INDUSTRIAL TRACTOR HA771 HA871 TK371 TK381
INTEGRATED TOOLCARRIER IT38F IT38G IT38G II IT38H
MOTOR GRADER 120G 120H 120H ES 120H NA 120K 120K 2 120M 120M 2 12G 12H 12H ES 12H NA 12K 12M 12M 2 12M 3 12M 3 AWD 130G 135H 135H NA 140G 140H 140H ES 140H NA 140K 140K 2 140M 140M 2 140M 3 140M 3 AWD 143H 160G 160H 160H ES 160H NA 160K 160M 160M 2 160M 3 160M 3 AWD 163H 163H NA
WHEEL FELLER BUNCHER 533 543 HA770 HA870 TK370 TK380
WHEEL LOADER 938F 938G 938G II 938H
WHEEL SKIDDER 515 518C 525 525B 535B
WHEEL TRACTOR 627G 637G 657G
